Series 1050 Flat

6 MODULE FLAT ENCLOSURES FOR M36 DIN-RAIL

The Series 1050 flat is a compact 6 module enclosure, designed for applications that don’t require extra space above the PCB. By reducing this space and eliminating and eliminating the need for long spindles for switches, trimmers and light guides for LEDs, this enclosure helps our customers save money and space.

Series 1050 flat is, if requested, available with engraved terminal numbers and symbols, and with custom made holes in the front.
Lid, PCB, customized label, and packing is available.
A closed version without terminals is also available.
Light conductors and spindles that fit the height of the box are available.

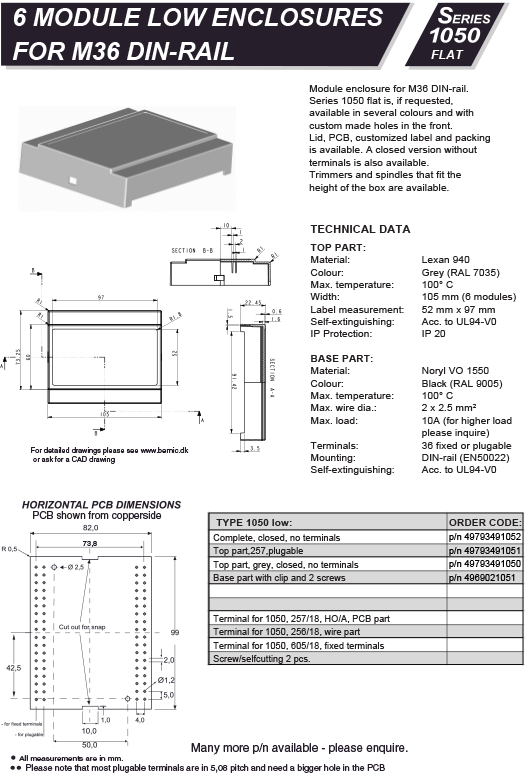

Specification sheet
Category: Tags: , ,
Description

Type 1050 flat top grey/closed - product number: 49793491050 Type 1050 flat top grey/257 - product number: 49793491051 Type 1050 flat top grey/605 - product number: 49793491052 Type 1050 flat complete grey/closed - product number: 49793481051 Type 1050 flat complete grey/257 - product number: 49793481052 Type 1050 flat complete grey/605 - product number: 49773481053 Basepart with clip and 2 screws - product number: 4989021051

Types and Order Codes

Type 1050 Flat & Order codes:
Type 1050 flat top grey/closed - product number: 49793491050
Type 1050 flat top grey/257 - product number: 49793491051
Type 1050 flat top grey/605 - product number: 49793491052
Type 1050 flat complete grey/closed - product number: 49793481051

Type 1050 flat complete grey/257 - product number: 49793481052
Type 1050 flat complete grey/605 - product number: 49773481053
Basepart with clip and 2 screws - product number: 4989021051
